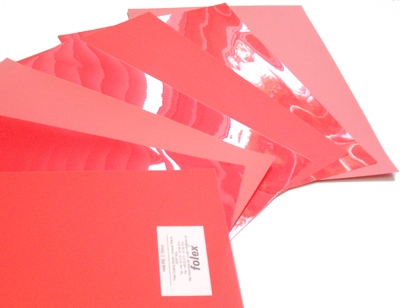

Folabase H48 RB
Self-adhesive, state-of-the-art underpacking foil with antislip coating
The self-adhesive polyester underpacking foils of the Folabase range are characterised by high resistance to swelling in the presence of damping solution and washing agents. They are used to adapt the cylinder circumference and printing length on sheet-fed and web presses. The self-adhesive versions support automation, particularly on presses with automatic plate changers, and simplify subsequent handling.
Folabase H48 RB is the result of a further development of the well proven and valued underpacking foil classic, Folabase H45 RB. One of the main innovations are the corrosion-inhibiting additives protecting the cylinder surface. The foil can be easily applied to almost all cylinders and can be removed quickly and cleanly with very little cleaning effort. The adhesive coating is similar to the Folabase H48's, with the difference of a special matt finish additionally applied on one side: This anti-slip coating supports the fixing of rubber blankets, especially on rotary presses, and guarantees register-accurate dot transfer.
The foil's release film consists of siliconised propylene which prevents wrinkling and avoids dust inclusion. Due to its high resistance to chemical cleaners and solvents and – like all Folabase adhesives – a very good thermal stability on the press, Folabase H48 is characterised by a long service life.
In contrast to paper-based underpacking sheets, the tear-resistant, dimensionally stable polyester does not suffer any reduction in thickness when exposed to excessive pressures. Since they contain no PVC, used foils can be disposed of without difficulty.
At a glance
Application Range: |
Corrections of cylinder circumference and printing length on sheet-fed and web presses • specifically recommended for use on blanket cylinders |
Main features: |
Antislip coating • protection of the blanket cylinder by corrosion-inhibiting additives • high dimensional stability • high bond shear, thus no displacement • high temperature resistance in the printing process • resistance to cleaners and solvents • easy handling • easily repositionable • less cleaning effort after removal • high resistance to swelling • easy disposal |
Technical Data:
Material |
Polyester film covered with antislip coating, adhesive on one side, silicon-release film |
Colour |
pink |
Adhesive |
Water based, thickness25 - 40 g/m² |
Tack value |
5 - 11 N (based on Finat 1) |
Shear bond strength |
>20 h (based on Finat 8) |
Protection paper |
50 g/m², with silicon coating on one side |
Thicknesses |
0.14 - 0.25 mm (see below),
tolerance base foil thickness +/- 10% |
Important notes
Calculation width: |
1 300 mm (Effective width: 1 270 mm) |
Available thicknesses:
Thickness |
Ref. no. |
|
Thickness |
Ref. no. |
0.14 mm |
031914 |
|
0.20 mm |
031920 |
0.16 mm |
031916 |
|
0.23 mm |
031923 |
0.18 mm |
031918 |
|
0.25 mm |
031925 |
